9–25 mm Narrow Slit 1060 HO Aluminum Strip Coil

Introduction of 9–25 mm Narrow Slit 1060-O Aluminum Strip Coil

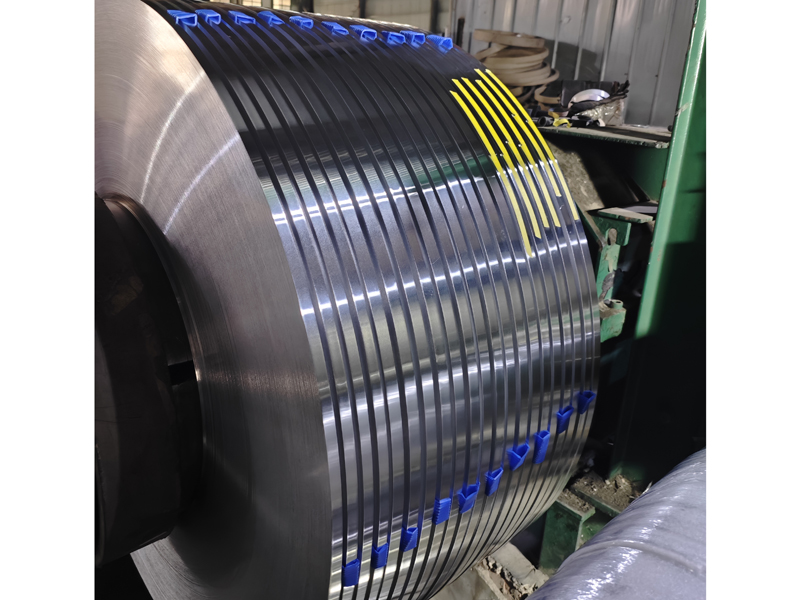

1060-O Aluminum Strip Coil is precision-slitted from high-purity 1060 aluminum alloy coil in the fully annealed O temper. Designed for applications requiring narrow widths, excellent ductility, consistent dimensions, and clean slit edges, the aluminum strip can be customized to meet specific downstream processing and automated production requirements.

With advanced longitudinal slitting equipment and controlled slitting parameters, we provide aluminum strips with consistent width, smooth edges, low burrs, stable winding, and reliable surface quality.

High-Purity 1060 Aluminum Alloy

1060 aluminum is a commercially pure aluminum alloy with a minimum aluminum content of approximately 99.6%. It combines excellent electrical and thermal conductivity with good corrosion resistance, ductility, and formability.

In the O temper, the material is fully annealed and highly ductile, making it suitable for subsequent operations such as bending, stamping, forming, winding, and other secondary fabrication processes.

Key Material Advantages of 1060-O Aluminum Strip Coil

• High aluminum purity with excellent electrical and thermal conductivity
• Excellent ductility and formability in the O temper
• Good corrosion resistance in common atmospheric environments
• Lightweight, with a density of approximately 2.7 g/cm³
• Suitable for various secondary forming and fabrication processes

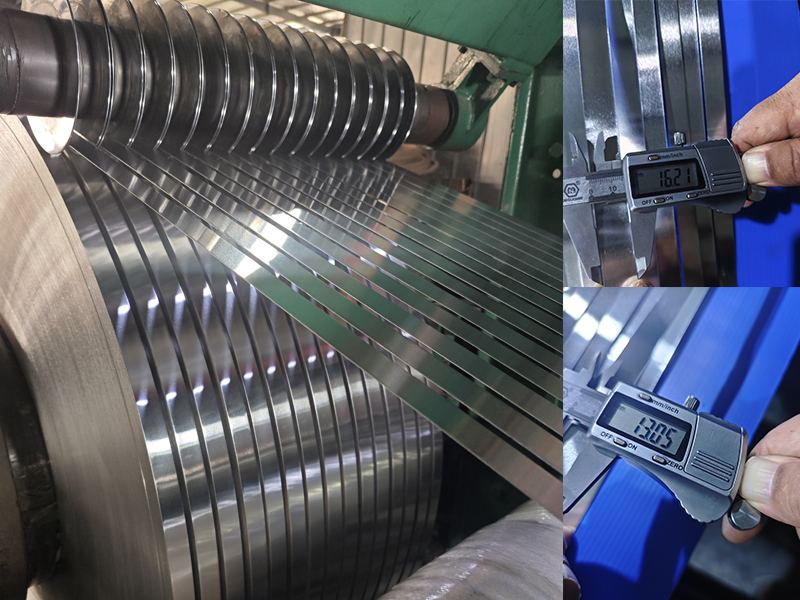

Precision Narrow Slitting: The quality of a narrow aluminum strip depends not only on the base material but also on the precision of the slitting process. Our production line uses controlled slitting parameters, precision tooling, and tension control to provide stable strip dimensions and clean edges.

Key Slitting Advantages

Consistent Strip Width: Slitting parameters are carefully controlled to achieve stable width dimensions. Width tolerance can be customized according to the customer’s technical requirements and actual strip specifications.

Smooth, Low-Burr Edges:Proper knife selection, knife clearance, and slitting pressure help produce clean and smooth edges with low burr formation, reducing the risk of edge damage during subsequent processing.

Stable Coil Winding: Controlled strip tension during slitting and rewinding helps maintain uniform coil winding and good edge alignment, making the strips suitable for continuous feeding and automated production lines.

Good Surface Quality: The slitting process is carefully controlled to minimize scratches, contamination, and other surface defects. Protective or lightly oiled surfaces can be supplied when required by the application.

Typical Applications of 1060-O Aluminum Strip Coil

Depending on the required electrical, mechanical, dimensional, and processing properties, 1060-O narrow aluminum strips can be used in a variety of industrial applications, including:

Electrical & Electronic Applications

• Electrical winding components
• Electromagnetic shielding applications
• Cable and wire wrapping
• Conductive strips and connectors
• Selected transformer and electrical component applications

Heat Transfer Applications

• Heat exchanger components
• Cooling and thermal management components
• HVAC-related applications
• Selected radiator and cooling applications

Automotive Applications

• Wire harness wrapping
• Thermal insulation components
• Protective strips
• Lightweight formed components

General Industrial Applications

• Sealing and closure components
• Formed aluminum parts
• Decorative and lighting components
• Packaging-related aluminum strips
• Other applications requiring narrow, ductile aluminum strips

Quality Control

We understand that small dimensional deviations in narrow strips can affect downstream processing efficiency. Therefore, quality control is applied throughout the production process, from incoming aluminum coil inspection to final slitting and packaging.

Key inspection items include:

• Alloy and temper verification
• Thickness and width measurement
• Width tolerance control
• Edge and burr inspection
• Surface quality inspection
• Coil winding and alignment inspection
• Packaging inspection

Inspection reports and material certificates can be provided according to customer requirements.

Customized Slitting Service

We provide customized narrow-strip slitting based on the customer’s application and production requirements, including:

• Slit width
• Thickness
• Width tolerance
• Coil weight
• Coil inner diameter
• Surface condition

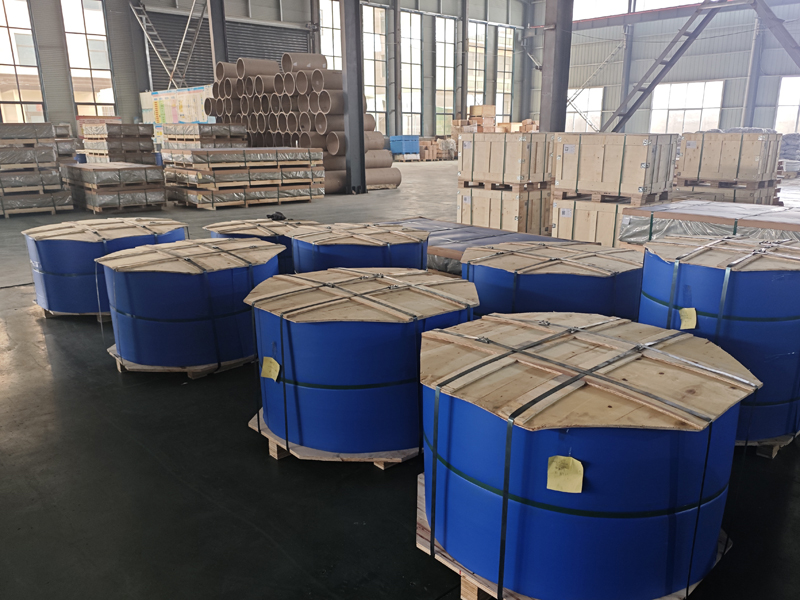

• Packaging method
• Special edge-quality requirements

For applications with strict dimensional or edge-quality requirements, customers are welcome to provide drawings or technical specifications for evaluation.

Why Choose Our 1060-O Narrow Aluminum Strip?

High-Purity Material + Precision Slitting + Stable Dimensions + Clean Edges

Our 9–25 mm 1060-O aluminum strip coil provides a practical solution for customers who require narrow-width aluminum strips with excellent ductility, reliable dimensional consistency, and controlled edge quality for continuous processing and precision manufacturing.
