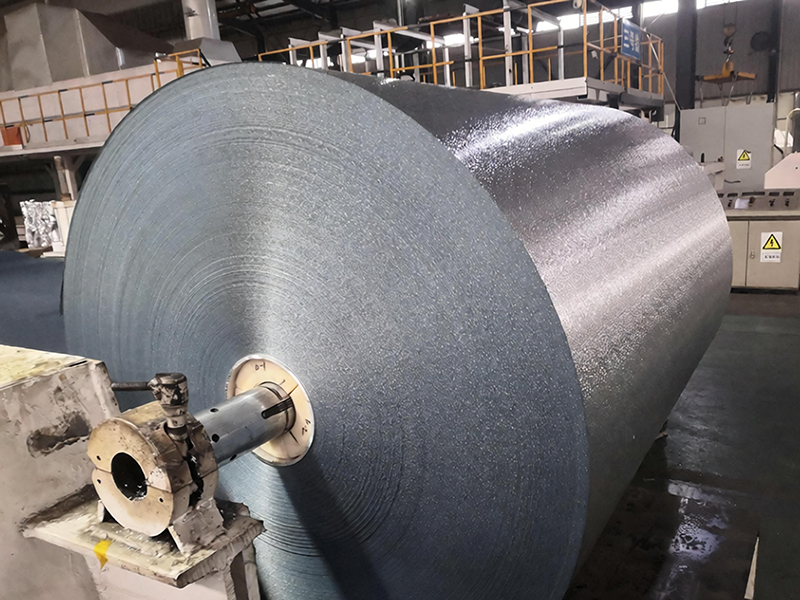

Introduction of 8011 H22 PE&Epoxy Coated and Embossed Aluminum Foil
8011 H22 embossed aluminum foil with PE and epoxy coatings is specifically designed for the production of PIR and PUR insulation boards. This product combines high-quality aluminum foil with PE and epoxy coating technologies to offer excellent surface protection, adhesion, durability, and processing stability. By integrating alloy strength, surface embossing, and functional coatings, it serves as the ideal surface material for high-end building insulation panels.
The embossed surface texture not only enhances the aluminum foil’s appearance but also improves its adhesion to insulation materials during the panel lamination process. Specially formulated PE and epoxy coatings help provide reliable surface protection and strong adhesion, making this aluminum foil suitable for demanding PIR/PUR insulation panel manufacturing applications.
Manufactured from 8011 aluminum alloy in the H22 temper, this aluminum foil achieves a good balance between strength, formability, and processability. It can be customized according to customer requirements in terms of thickness, width, coating type, coating weight, color, embossing pattern, and surface properties.
Core Processes and Advantages
1. Functional Surface Treatment: Embossing and Coating
This product achieves dual surface optimization through a lamination process to meet the requirements of insulation board lamination and production:

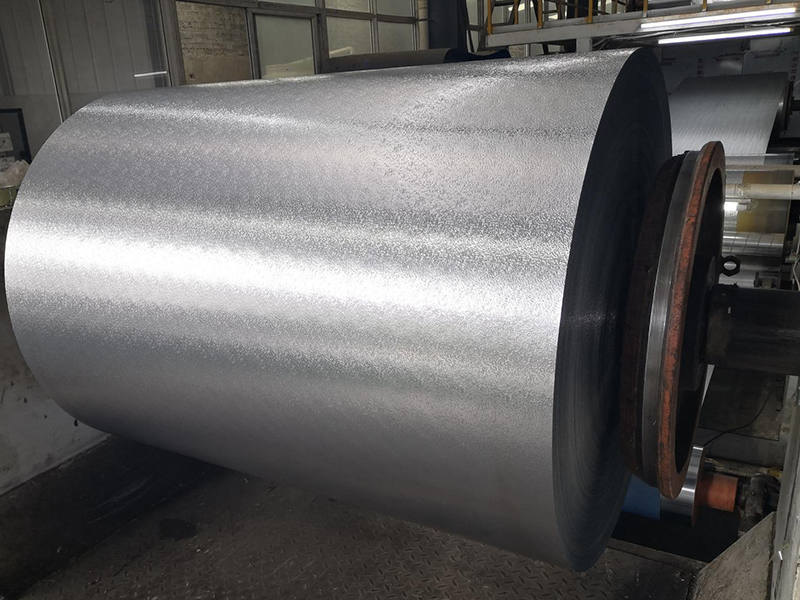

Orange-peel embossing: Creates a uniform orange-peel texture on the surface. This design not only enhances aesthetics but, more importantly: Improves adhesion: By increasing the specific surface area, it enables a stronger and more reliable interface bond when laminated to PIR/PUR foam core materials.
Enhanced Performance: The texture acts as microscopic reinforcing ribs, improving the foil’s tear resistance and rigidity while also providing a slip-resistant surface.
PE and Epoxy Coatings: PE (Polyester) Coating: Typically used as an outer surface coating, it provides excellent weather resistance, corrosion resistance, and decorative properties, giving the panels a lustrous appearance.
Epoxy Resin Coating: Used as an inner coating for bonding to the foam core. Its function is to significantly enhance the bond strength between the aluminum foil and PIR/PUR foam, ensuring the panels do not delaminate during long-term use.
2. Outstanding Properties of the 8011-H22 Base Material
Strength and Formability: Compared to pure aluminum foil, the 8011 alloy offers higher mechanical strength and tear resistance. The H22 temper ensures the material has moderate hardness, providing sufficient structural support while meeting processing requirements such as embossing, slitting, and lamination.
3. Barrier Properties: The aluminum foil substrate itself provides 100% light blockage and excellent moisture and oxygen barrier properties, which are key to achieving long-term, stable thermal insulation performance in insulation panels.
Typical Applications
- Building Insulation: Used in cold storage panels, roof insulation panels, and cleanroom wall panels.
- HVAC Systems: Used as insulation facings for phenolic/polyurethane composite ductwork.
- Industrial Facilities: Used as insulation panels for industrial plants and prefabricated buildings.
Through the perfect combination of high-quality 8011 aluminum foil, PE and epoxy surface coatings, and embossed surface treatments, our products provide PIR/PUR insulation panel manufacturers with reliable and efficient facing material solutions that help enhance panel performance, production efficiency, and product durability.
