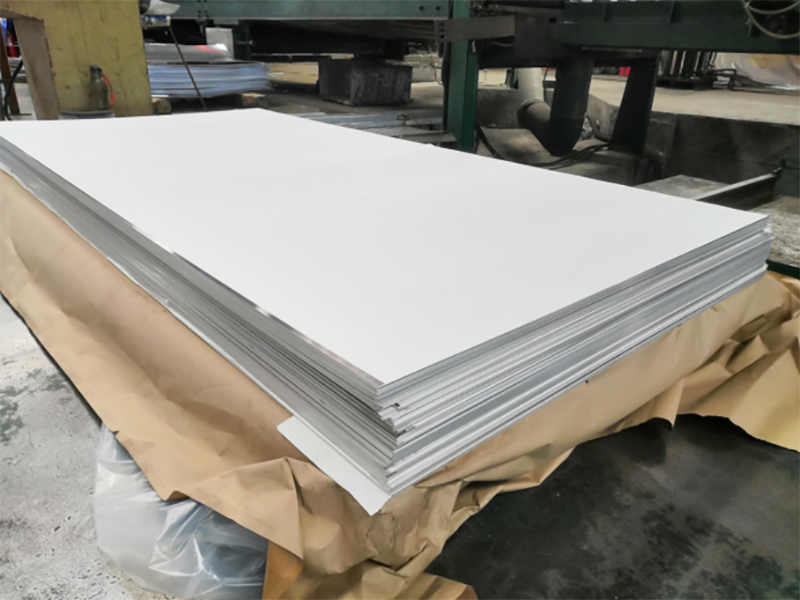

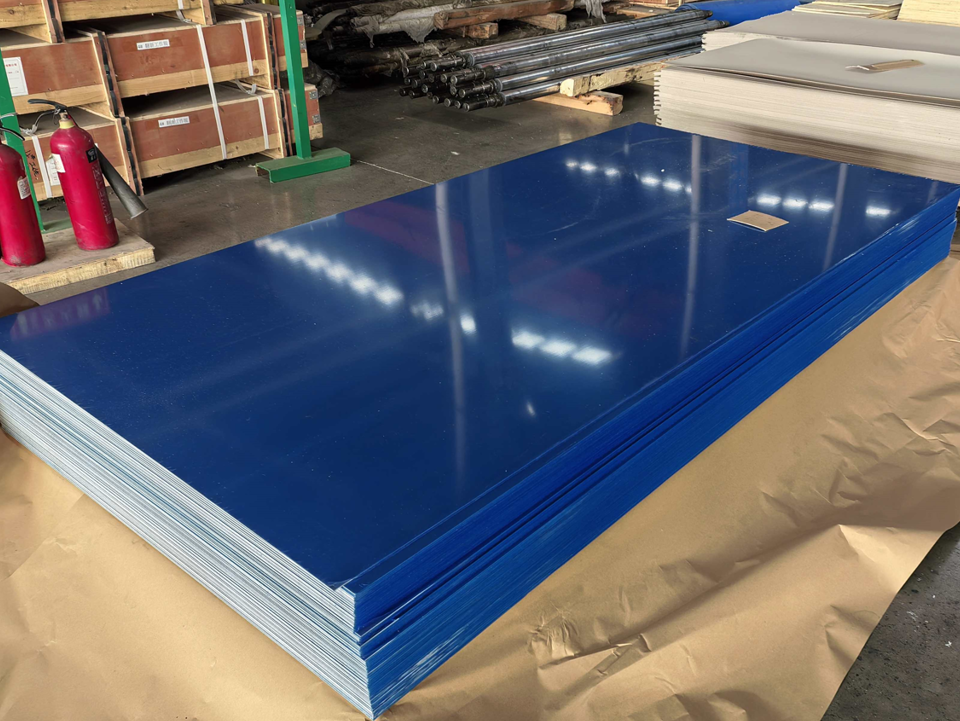

5052 H32 ALUMINUM PLATE

Introduction of 5052 H32 ALUMINUM PLATE

5052-H32 aluminum plate, the 5xxx series of aluminum-magnesium alloys, is one of the most widely used and cost-effective rust-resistant aluminum materials in this series. The H32 condition indicates that it has undergone a stabilization treatment to achieve a “1/4 hard” semi-hard condition, striking an ideal balance between strength and formability.

Key Performance Advantages

Thanks to its balanced performance across the following four areas, 5052-H32 is hailed as an “all-around” material in the manufacturing industry:

• 1. Balanced Mechanical Properties: Tensile strength typically ranges from 210 to 260 MPa, with a yield strength of ≥160 MPa and an elongation of ≥10%–12%. This strength level is significantly higher than that of pure aluminum and low-alloy series such as 1100 and 3003, making it sufficient to meet the load-bearing requirements of most structural components.
• 2. Excellent Corrosion Resistance: This is the most prominent feature of the 5052 alloy. It performs exceptionally well in seawater, marine atmospheres, and various industrial chemical environments, ranking among the top tier of aluminum alloys in terms of corrosion resistance; it is therefore also known as “rust-proof aluminum.”
• 3. Outstanding Machinability and Weldability: Formability: In the H32 condition, the alloy retains good ductility while maintaining sufficient strength, allowing for easy processing such as stamping, bending (90° bend without cracking), and drawing. It is particularly suitable for sheet metal stampings and complex-shaped parts. Weldability: Compatible with various welding methods, including TIG, MIG, and resistance welding, with weld strength reaching 90%–95% of the base metal.
• 4. Weight-Saving Advantages: With a density of only about one-third that of steel, it can significantly reduce product weight while ensuring structural strength—a critical factor in sectors such as transportation and portable devices.

Typical Applications

Thanks to its combination of “corrosion resistance, ease of forming, good weldability, and moderate strength,” 5052-H32 aluminum sheet is widely used across numerous industries:

• 1. Transportation: Automotive fuel tanks, body panels, bus skin and luggage compartment panels, and engine outer panels.
• 2. Shipbuilding and Offshore Engineering: Ship hulls, decks, and offshore platform structural components, taking full advantage of its excellent resistance to salt spray corrosion.
• 3. Electronics and Electrical: Enclosures and cabinets, 3C product housings (such as computer stands), charging station cabinets, and high-voltage switch housings.
• 4. Construction and Industry: High-end curtain wall panels, chemical storage tanks, pressure vessels, aluminum furniture, and precision machined parts.
