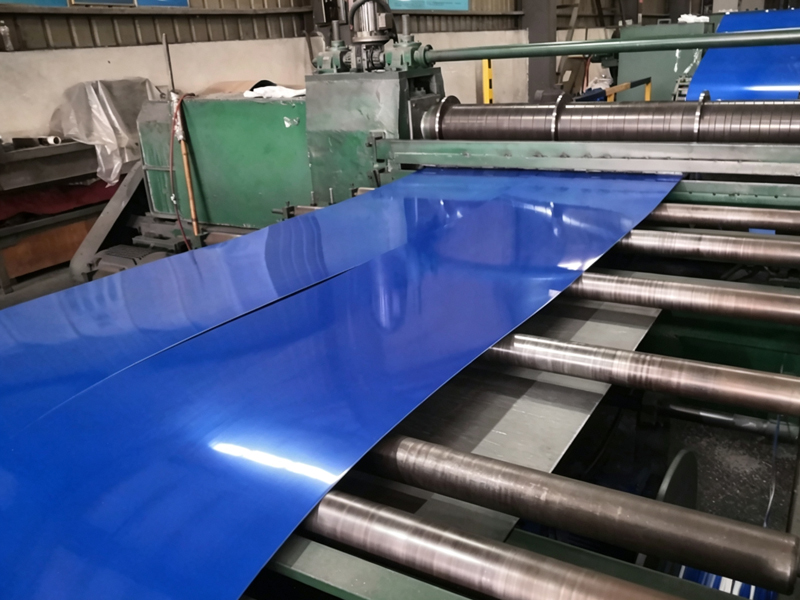

5052 H34 PVDF Color Coated Aluminum Coil

Introduction of 5052 H34 PVDF Color Coated Aluminum Coil

This is a high-performance, pre-coated colored aluminum alloy coil product, combining a high-quality 5052-H34 aluminum alloy substrate with a highly weather-resistant PVDF coating. It is specifically designed for applications requiring long-term durability and aesthetics.

Core characteristics:

1. Substrate Advantages: 5052-H34 Aluminum Alloy

Medium Strength and Good Formability: 5052 is an aluminum-magnesium alloy. The H34 temper indicates that it has undergone work hardening and stabilization treatment, resulting in higher strength (tensile strength approximately 248-305 MPa) than the ordinary H32 temper, while maintaining good ductility and formability. It can be bent, stamped, and processed without easily cracking.

Excellent Corrosion Resistance: 5052 alloy is a recognized corrosion-resistant material, especially performing exceptionally well in marine environments or humid atmospheres. Its resistance to salt spray corrosion far exceeds that of many other alloys.

Good Machining and Welding Performance: This material has good machinability and excellent weldability, facilitating subsequent manufacturing and forming.

2. Coating System: Double-Sided Protection

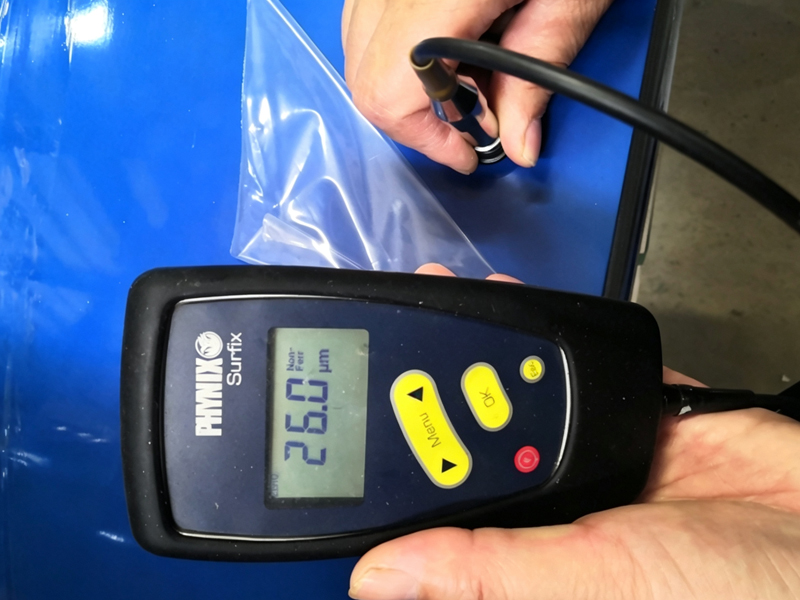

Front Side High-Performance PVDF Coating (25 microns): PVDF (polyvinylidene fluoride) coating is currently recognized as one of the coatings with the best weather resistance. Its chemical structure features extremely strong fluorocarbon bonds, giving the coating:

Superior Weather Resistance: Long-term resistance to UV radiation, anti-fading, and anti-chalking, ensuring the color stability of buildings or products for decades (typically guaranteed for 20-30 years).

Excellent Mechanical Properties: The coating has excellent abrasion resistance and impact resistance, effectively protecting the aluminum substrate.

Back Side Protective Coating (10 microns): A 10-micron coating (usually epoxy or polyester primer) is applied to the back of the aluminum coil, providing additional moisture and corrosion protection to the substrate, enhancing the overall resistance of the product to environmental erosion, especially suitable for applications requiring double-sided protection.

3. Application Areas

Thanks to its combination of strength, corrosion resistance, and ultra-long-lasting weather-resistant coating, this product is ideal for the following fields:

Architectural Decoration: Suitable for high-end building metal curtain walls, exterior wall decoration, roofing systems, sunshade louvers, interior ceilings, etc.

Transportation: Used for RV and trailer side panels, truck bodies, ship interior decoration, etc., achieving a combination of lightweight and durability.

Other Industrial Fields: Also suitable for electrical appliance housings, advertising display boards, signage, etc.

5052-H34 PVDF color-coated aluminum coil is a high-end product that combines the mechanical properties of a superior aluminum alloy substrate with the ultra-long-lasting protective and decorative properties of a top-grade fluorocarbon coating. Its protective coating on the back further increases the product’s life-cycle value, making it a preferred choice for projects with demanding requirements that prioritize long-term aesthetics and reliability.
